NASR-M SYZYGY carrier board
NASR-M
Some time ago, I decided to try Xilinx Zynq, which everyone is using in their RF projects. And what is a better option for exploring a new chip than making a board around it? Spending some money on a reference design devkit from the manufacturer? No, that's certainly not my way of learning things.
My dream board had 1GB of 32-bit-wide DDR3 RAM, SYZYGY ports, a standard ATX power supply, 1Gb ethernet port, and remote management that would allow me to flash firmware, control the system remotely, and export temperature and power usage readings to let me debug comfortably. Since that's my first rather complex embedded board in KiCad, I have made some dubious choices with PCB stackup, component placement, and routing. Sounds counterintuitive, but that was already a great learning experience in how not to do things and which design choices to avoid. It may work, however. I am pretty concerned about the DDR3 part, which was the most challenging part to route.
But if it works, I would have an excellent opportunity to play with software radio on a different level. And by different level, I mean a system built from scratch. Long story short, it's on a GitHub, completely open "with open-source everything". Once the board boots up, I will publish the Vivado design and the board MCU firmware sources. This will take some time, though. Once I'm more confident in design, I'll order PCBs from JLCPCB, and it will take even more time to solder the components in circuit by circuit, starting with the MCU, then the secondary PSU, and the rest. Scroll down into the long list of things that could break if you are interested in this rather dramatic development.

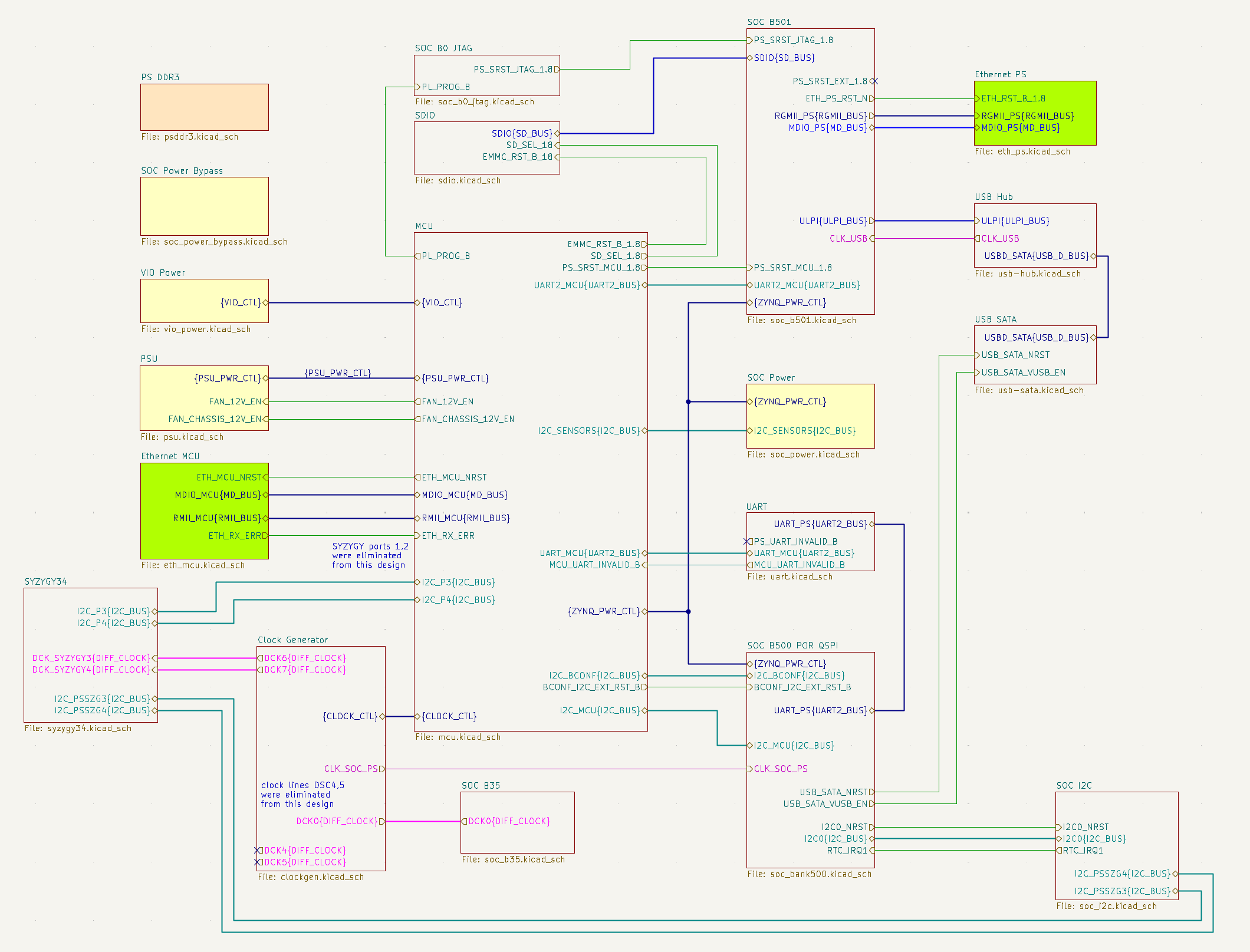

Design is made with KiCad 9. Below is a high-level overview of fundamental blocks.
lboard2 sound processing dev board with spartan-6 and aic3204
lboard2 is my take on building a simple DSP application using Xilinx Spartan-6 FPGA and TI TLV320AIC3204 audio codec from the scratch. I thought it's far more interesting to design my own booard instead of buying a commercially available development kit which just works. Currently, lboard2 is passing a loopback test, which means that audio samples are captured with a codec, being received on the FPGA pins, then routed back to a codec's DAC and heard with a headphones. Loopback isn't the most exciting application, so I'm working on a simple Fourier transfer based VU-meter. Once it's ready, I'll post the code, but before that, I'd like to share my experience with Spartan-6 in a series of a short posts tagged with an lboard2 label.
Hoping this information would help beginners to build a working system faster and with less pain.
